ISOLATORS
1 POLE
PRODUCT TYPE

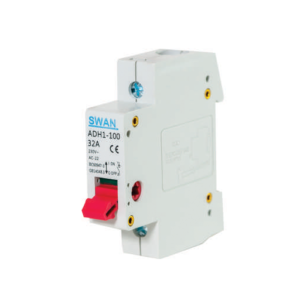

ISOLATOR DIN 1P 32A
Product code: IS-ADH1-100-132
ISOLATOR DIN 1P 63A
Product code: IS-ADH1-100-163
ISOLATOR DIN 1P 100A
Product code: IS-ADH1-100-1100
2 POLE
PRODUCT TYPE
ISOLATOR DIN 2P 32A
Product code: IS-ADH1-100-232
ISOLATOR DIN 2P 63A
Product code: IS-ADH1-100-263
ISOLATOR DIN 2P 100A
Product code: IS-ADH1-100-2100
ISOLATOR DIN 2P 125A
Product code: IS-ADH1-125-2125
3 POLE
PRODUCT TYPE
ISOLATOR DIN 3P 32A
Product code: IS-ADH1-100-332
ISOLATOR DIN 3P 63A
Product code:IS-ADH1-100-363
ISOLATOR DIN 3P 100A
Product code: IS-ADH1-100-3100
ISOLATOR DIN 3P 125A
Product code: IS-ADH1-125-3125
DESCRIPTION
Application
An isolator is a mechanical switching device that, in the open passion, allows for isolation of the input and output of a device. It is applied to switch on and off a circuit of control motors, electrical apparatus, and lighting system.
Technical Data
Standard IEC60947-3
Rated Current 20, 32, 40, 63, 80, 100
Poles 1P, 2P, 3P, 4P
AC Volts 230V, 415V
Rated Frequency 50/60Hz
Electrical life expectancy 3000 operations
Mechanical life expectancy 10000 operations
Degree of protection IP20
