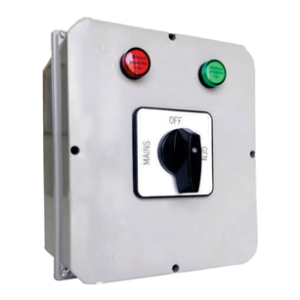

ENCLOSED CHANGEOVER

PRODUCT DESCRIPTION

ENCLOSED CHANGEOVER 2P 63A

Product code: 30ECS-63A-2P

ENCLOSED CHANGEOVER 4P 63A

Product code: 30ECS-63A-4P

DESCRIPTION

Application

The product has four functions switch on and off, conversion and isolation, can be used in a group of line with two loads, as well as two power supplies. The 3P can also be used to control the positive and negative rotation of the motor, with standard DIN rail (35×7.5mm) mounted, the housing is moulded by PA66 material, with high flame-retardant performance.

Technical Data

Standard   SANS556-1 IEC60947-2
Rated current    40A, 63A
Poles  2P, 4P
AC Volts   230V, 415V
Rated frequency   50/60Hz
Protection degree   IP20
Best Ambient temperature   -5 ℃ / +40 ℃
